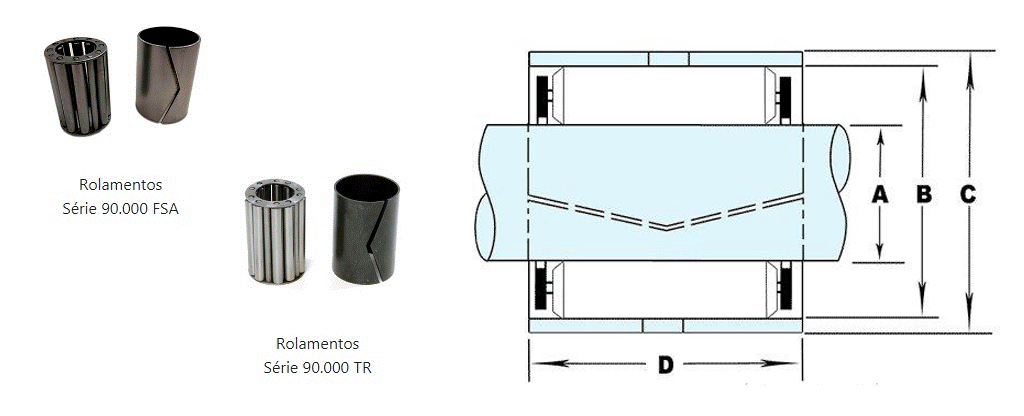

| N° | A (POL.) | B (POL.) | C (POL.) | D (POL.) |
93112 |
1/2" | 7/8" | 15/16" | 3/4" |
| 93114 | 1/2" | 7/8" | 15/16" | 7/8" |
| 93116 | 1/2" | 7/8" | 15/16" | 1" |
| 93118 | 1/2" | 7/8" | 15/16" | 1.1/8" |
| 93120 | 1/2" | 7/8" | 15/16" | 1.1/4" |
| 93122 | 1/2" | 7/8" | 15/16" | 1.3/8" |
| 93124 | 1/2" | 7/8" | 15/16" | 1.1/2" |
| 93126 | 1/2" | 7/8" | 15/16" | 1.5/8" |
| 93132 | 1/2" | 7/8" | 15/16" | 2" |
| 93212 | 5/8" | 1" | 1.1/16" | 3/4" |
| 93214 | 5/8" | 1" | 1.1/16" | 7/8" |
| 93216 | 5/8" | 1" | 1.1/16" | 1" |
| 93218 | 5/8" | 1" | 1.1/16" | 1.1/8" |
| 93220 | 5/8" | 1" | 1.1/16" | 1.1/4" |
| 93222 | 5/8" | 1" | 1.1/16" | 1.3/8" |
| 93224 | 5/8" | 1" | 1.1/16" | 1.1/2" |
| 93226 | 5/8" | 1" | 1.1/16" | 1.5/8" |
| 93228 | 5/8" | 1" | 1.1/16" | 1.3/4" |
| 93230 | 5/8" | 1" | 1.1/16" | 1.7/8" |
| 93312 | 3/4" | 1.1/8" | 1.3/16" | 3/4" |
| 93314 | 3/4" | 1.1/8" | 1.3/16" | 7/8" |
| 93316 | 3/4" | 1.1/8" | 1.3/16" | 1" |
| 93320 | 3/4" | 1.1/8" | 1.3/16" | 1.1/4" |
| 93322 | 3/4" | 1.1/8" | 1.3/16" | 1.3/8" |
| 93324 | 3/4" | 1.1/8" | 1.3/16" | 1.1/2" |
| 93326 | 3/4" | 1.1/8" | 1.3/16" | 1.5/8" |
| 93328 | 3/4" | 1.1/8" | 1.3/16" | 1.3/4" |
| 93330 | 3/4" | 1.1/8" | 1.3/16" | 1.7/8" |
| 93332 | 3/4" | 1.1/8" | 1.7/32" | 2" |
| 93336 | 3/4" | 1.1/8" | 1.7/32" | 2.1/4" |
| 93412 | 7/8" | 1.1/4" | 1.5/16" | 3/4" |
| 93416 | 7/8" | 1.1/4" | 1.5/16" | 1" |
| 93420 | 7/8" | 1.1/4" | 1.5/16" | 1.1/4" |
| 93422 | 7/8" | 1.1/4" | 1.5/16" | 1.3/8" |
| 93424 | 7/8" | 1.1/4" | 1.5/16" | 1.1/2" |
| 93426 | 7/8" | 1.1/4" | 1.5/16" | 1.5/8" |
| 93428 | 7/8" | 1.1/4" | 1.5/16" | 1.3/4" |
| 93432 | 7/8" | 1.1/4" | 1.5/16" | 2" |
| 93436 | 7/8" | 1.1/4" | 1.5/16" | 2.1/4" |
| 93440 | 7/8" | 1.1/4" | 1.5/16" | 2.1/2" |
| 93516 | 1" | 1.3/8" | 1.7/16" | 1" |
| 93522 | 1" | 1.3/8" | 1.7/16" | 1.3/8" |
| 93524 | 1" | 1.3/8" | 1.7/16" | 1.1/2" |
| 93532 | 1" | 1.3/8" | 1.15/32" | 2" |
| 93536 | 1" | 1.3/8" | 1.15/32" | 2.1/4" |
| 93612 | 1.1/8" | 1.1/2" | 1.9/16" | 3/4" |
| 93616 | 1.1/8" | 1.1/2" | 1.9/16" | 1" |
| 93620 | 1.1/8" | 1.1/2" | 1.9/16" | 1.1/4" |
| 93622 | 1.1/8" | 1.1/2" | 1.9/16" | 1.3/8" |
| 93624 | 1.1/8" | 1.1/2" | 1.9/16" | 1.1/2" |
| 93626 | 1.1/8" | 1.1/2" | 1.9/16" | 1.5/8" |
| 93628 | 1.1/8" | 1.1/2" | 1.9/16" | 1.3/4" |
| 93632 | 1.1/8" | 1.1/2" | 1.9/16" | 2" |
| 93640 | 1.1/8" | 1.1/2" | 1.9/16" | 2.1/2" |
| 93648 | 1.1/8" | 1.1/2" | 1.9/16" | 3" |
| 93716 | 1.1/4" | 1.5/8" | 1.3/4" | 1" |
| 93720 | 1.1/4" | 1.5/8" | 1.3/4" | 1.1/4" |
| 93724 | 1.1/4" | 1.5/8" | 1.3/4" | 1.1/2" |
| 93728 | 1.1/4" | 1.5/8" | 1.3/4" | 1.3/4" |
| 93820 | 1.3/8" | 1.3/4" | 1.7/8" | 1.1/4" |
| 93830 | 1.3/8" | 1.3/4" | 1.7/8" | 1.7/8" |
| 94112 | 1/2" | 1" | 1.1/16" | 3/4" |
| 94116 | 1/2" | 1" | 1.1/16" | 1" |
| 94118 | 1/2" | 1" | 1.1/16" | 1.1/8" |
| 94122 | 1/2" | 1" | 1.1/16" | 1.3/8" |
| 94126 | 1/2" | 1" | 1.1/16" | 1.5/8" |
| 94128 | 1/2" | 1" | 1.1/16" | 1.3/4" |
| 94132 | 1/2" | 1" | 1.1/16" | 2" |
| 94212 | 5/8" | 1.1/8" | 1.3/16" | 3/4" |
| 94216 | 5/8" | 1.1/8" | 1.3/16" | 1" |
| 94218 | 5/8" | 1.1/8" | 1.3/16" | 1.1/8" |
| 94220 | 5/8" | 1.1/8" | 1.3/16" | 1.1/4" |
| 94222 | 5/8" | 1.1/8" | 1.3/16" | 1.3/8" |
| 94224 | 5/8" | 1.1/8" | 1.3/16" | 1.1/2" |
| 94226 | 5/8" | 1.1/8" | 1.3/16" | 1.5/8" |
| 94228 | 5/8" | 1.1/8" | 1.3/16" | 1.3/4" |
| 94230 | 5/8" | 1.1/8" | 1.3/16" | 1.7/8" |
| 94232 | 5/8" | 1.1/8" | 1.7/32" | 2" |
| 94234 | 5/8" | 1.1/8" | 1.3/16" | 2.1/8" |
| 94236 | 5/8" | 1.1/8" | 1.7/32" | 2.1/4" |
| 94240 | 5/8" | 1.1/8" | 1.3/16" | 2.1/2" |
| 94312 | 3/4" | 1.1/4" | 1.5/16" | 3/4" |
| 94316 | 3/4" | 1.1/4" | 1.5/16" | 1" |
| 94318 | 3/4" | 1.1/4" | 1.5/16" | 1.1/8" |
| 94322 | 3/4" | 1.1/4" | 1.5/16" | 1.3/8" |
| 94324 | 3/4" | 1.1/4" | 1.5/16" | 1.1/2" |
| 94326 | 3/4" | 1.1/4" | 1.5/16" | 1.5/8" |
| 94328 | 3/4" | 1.1/4" | 1.5/16" | 1.3/4" |
| 94330 | 3/4" | 1.1/4" | 1.5/16" | 1.7/8" |
| 94332 | 3/4" | 1.1/4" | 1.5/16" | 2" |
| 94334 | 3/4" | 1.1/4" | 1.5/16" | 2.1/8" |
| 94336 | 3/4" | 1.1/4" | 1.5/16" | 2.1/4" |
| 94338 | 3/4" | 1.1/4" | 1.5/16" | 2.3/8" |
| 94340 | 3/4" | 1.1/4" | 1.5/16" | 2.1/2" |
| 94412 | 7/8" | 1.3/8" | 1.7/16" | 3/4" |
| 94416 | 7/8" | 1.3/8" | 1.7/16" | 1" |
| 94420 | 7/8" | 1.3/8" | 1.7/16" | 1.1/4" |
| 94422 | 7/8" | 1.3/8" | 1.7/16" | 1.3/8" |
| 94424 | 7/8" | 1.3/8" | 1.7/16" | 1.1/2" |
| 94428 | 7/8" | 1.3/8" | 1.7/16" | 1.3/4" |
| 94430 | 7/8" | 1.3/8" | 1.7/16" | 1.7/8" |
| 94432 | 7/8" | 1.3/8" | 1.15/32" | 2" |
| 94436 | 7/8" | 1.3/8" | 1.15/32" | 2.1/4" |
| 94438 | 7/8" | 1.3/8" | 1.7/16" | 2.3/8" |
| 94440 | 7/8" | 1.3/8" | 1.7/16" | 2.1/2" |
| 94512 | 1" | 1.1/2" | 1.9/16" | 3/4" |
| 94516 | 1" | 1.1/2" | 1.9/16" | 1" |
| 94518 | 1" | 1.1/2" | 1.9/16" | 1.1/8" |
| 94520 | 1" | 1.1/2" | 1.9/16" | 1.1/4" |
| 94522 | 1" | 1.1/2" | 1.9/16" | 1.3/8" |
| 94524 | 1" | 1.1/2" | 1.9/16" | 1.1/2" |
| 94526 | 1" | 1.1/2" | 1.9/16" | 1.5/8" |
| 94528 | 1" | 1.1/2" | 1.9/16" | 1.3/4" |
| 94532 | 1" | 1.1/2" | 1.9/16" | 2" |
| 94536 | 1" | 1.1/2" | 1.9/16" | 2.1/4" |
| 94538 | 1" | 1.1/2" | 1.9/16" | 2.3/8" |
| 94540 | 1" | 1.1/2" | 1.9/16" | 2.1/2" |
| 94544 | 1" | 1.1/2" | 1.9/16" | 2.3/4" |
94564 |
1" | 1.1/2" | 1.9/16" | 4" |
| 94612 | 1.1/8" | 1.5/8" | 1.3/4" | 3/4" |
| 94616 | 1.1/8" | 1.5/8" | 1.3/4" | 1" |
| 94618 | 1.1/8" | 1.5/8" | 1.3/4" | 1.1/8" |
| 94620 | 1.1/8" | 1.5/8" | 1.3/4" | 1.1/4" |
| 94622 | 1.1/8" | 1.5/8" | 1.3/4" | 1.3/8" |
| 94624 | 1.1/8" | 1.5/8" | 1.3/4" | 1.1/2" |
| 94626 | 1.1/8" | 1.5/8" | 1.3/4" | 1.5/8" |
| 94628 | 1.1/8" | 1.5/8" | 1.3/4" | 1.3/4" |
| 94632 | 1.1/8" | 1.5/8" | 1.3/4" | 2" |
| 94636 | 1.1/8" | 1.5/8" | 1.3/4" | 2.1/4" |
| 94638 | 1.1/8" | 1.5/8" | 1.3/4" | 2.3/8" |
| 94640 | 1.1/8" | 1.5/8" | 1.3/4" | 2.1/2" |
| 94666 | 1.1/8" | 1.5/8" | 1.3/4" | 4.1/8" |
| 94716 | 1.1/4" | 1.3/4" | 1.7/8" | 1" |
| 94720 | 1.1/4" | 1.3/4" | 1.7/8" | 1.1/4" |
| 94722 | 1.1/4" | 1.3/4" | 1.7/8" | 1.3/8" |
| 94724 | 1.1/4" | 1.3/4" | 1.7/8" | 1.1/2" |
| 94726 | 1.1/4" | 1.3/4" | 1.7/8" | 1.5/8" |
| 94728 | 1.1/4" | 1.3/4" | 1.7/8" | 1.3/4" |
| 94732 | 1.1/4" | 1.3/4" | 1.7/8" | 2" |
| 94736 | 1.1/4" | 1.3/4" | 1.7/8" | 2.1/4" |
| 94740 | 1.1/4" | 1.3/4" | 1.7/8" | 2.1/2" |
| 94746 | 1.1/4" | 1.3/4" | 1.7/8" | 2.7/8" |
| 94828 | 1.3/8" | 1.7/8" | 2" | 1.3/4" |
| 94928 | 1.1/2" | 2" | 2.3/16" | 1.3/4" |
| 94932 | 1.1/2" | 2" | 2.3/16" | 2" |
| 94940 | 1.1/2" | 2" | 2.3/16" | 2.1/2" |
| 95316 | 3/4" | 1.3/8" | 1.7/16" | 1" |
| 95324 | 3/4" | 1.3/8" | 1.7/16" | 1.1/2" |
| 95332 | 3/4" | 1.3/8" | 1.15/32" | 2" |
| 95336 | 3/4" | 1.3/8" | 1.15/32" | 2.1/4" |
| 95340 | 3/4" | 1.3/8" | 1.7/16" | 2.1/2" |
| 95416 | 7/8" | 1.1/2" | 1.9/16" | 1" |
| 95420 | 7/8" | 1.1/2" | 1.9/16" | 1.1/4" |
| 95424 | 7/8" | 1.1/2" | 1.9/16" | 1.1/2" |
| 95426 | 7/8" | 1.1/2" | 1.9/16" | 1.5/8" |
| 95432 | 7/8" | 1.1/2" | 1.9/16" | 2" |
| 95436 | 7/8" | 1.1/2" | 1.9/16" | 2.1/4" |
| 95440 | 7/8" | 1.1/2" | 1.9/16" | 2.1/2" |
| 95516 | 1" | 1.5/8" | 1.3/4" | 1" |
| 95520 | 1" | 1.5/8" | 1.3/4" | 1.1/4" |
| 95524 | 1" | 1.5/8" | 1.3/4" | 1.1/2" |
| 95526 | 1" | 1.5/8" | 1.3/4" | 1.5/8" |
| 95528 | 1" | 1.5/8" | 1.3/4" | 1.3/4" |
| 95532 | 1" | 1.5/8" | 1.3/4" | 2" |
| 95536 | 1" | 1.5/8" | 1.3/4" | 2.1/4" |
| 95540 | 1" | 1.5/8" | 1.3/4" | 2.1/2" |
| 95546 | 1" | 1.5/8" | 1.3/4" | 3" |
| 95548 | 1" | 1.5/8" | 1.3/4" | 3" |
| 95550 | 1" | 1.5/8" | 1.3/4" | 3.1/8" |
| 95556 | 1" | 1.5/8" | 1.3/4" | 3.1/2" |
| 95564 | 1" | 1.5/8" | 1.3/4" | 4" |
| 95616 | 1.1/8" | 1.3/4" | 1.7/8" | 1" |
| 95620 | 1.1/8" | 1.3/4" | 1.7/8" | 1.1/4" |
| 95624 | 1.1/8" | 1.3/4" | 1.7/8" | 1.1/2" |
| 95628 | 1.1/8" | 1.3/4" | 1.7/8" | 1.3/4" |
| 95632 | 1.1/8" | 1.3/4" | 1.7/8" | 2" |
| 95636 | 1.1/8" | 1.3/4" | 1.7/8" | 2.1/4" |
| 95638 | 1.1/8" | 1.3/4" | 1.7/8" | 2.3/8" |
| 95640 | 1.1/8" | 1.3/4" | 1.7/8" | 2.1/2" |
| 95648 | 1.1/8" | 1.3/4" | 1.7/8" | 3" |
| 95664 | 1.1/8" | 1.3/4" | 1.7/8" | 4" |
| 95716 | 1.1/4" | 1.7/8" | 2" | 1" |
| 95718 | 1.1/4" | 1.7/8" | 2" | 1.1/8" |
| 95724 | 1.1/4" | 1.7/8" | 2" | 1.1/2" |
| 95728 | 1.1/4" | 1.7/8" | 2" | 1.3/4" |
| 95732 | 1.1/4" | 1.7/8" | 2" | 2" |
| 95736 | 1.1/4" | 1.7/8" | 2" | 2.1/4" |
| 95740 | 1.1/4" | 1.7/8" | 2" | 2.1/2" |
| 95744 | 1.1/4" | 1.7/8" | 2" | 2.3/4" |
| 95746 | 1.1/4" | 1.7/8" | 2" | 2.7/8" |
| 95748 | 1.1/4" | 1.7/8" | 2" | 3" |
| 95764 | 1.1/4" | 1.7/8" | 2" | 4" |
| 95820 | 1.3/8" | 2" | 2.3/16" | 1.1/4" |
| 95824 | 1.3/8" | 2" | 2.3/16" | 1.1/2" |
| 95828 | 1.3/8" | 2" | 2.3/16" | 1.3/4" |
| 95832 | 1.3/8" | 2" | 2.3/16" | 2" |
| 95844 | 1.3/8" | 2" | 2.3/16" | 2.3/4" |
| 95848 | 1.3/8" | 2" | 2.3/16" | 3" |
| 95850 | 1.3/8" | 2" | 2.3/16" | 3.1/8" |
| 95852 | 1.3/8" | 2" | 2.3/16" | 3.1/4" |
| 95864 | 1.3/8" | 2" | 2.3/16" | 4" |
| 95868 | 1.3/8" | 2" | 2.3/16" | 4.1/4" |
| 95912 | 1.1/2" | 2.1/8" | 2.1/4" | 3/4" |
| 95918 | 1.1/2" | 2.1/8" | 2.1/4" | 1.1/8" |
| 95920 | 1.1/2" | 2.1/8" | 2.1/4" | 1.1/4" |
| 95924 | 1.1/2" | 2.1/8" | 2.1/4" | 1.1/2" |
| 95928 | 1.1/2" | 2.1/8" | 2.1/4" | 1.3/4" |
| 95932 | 1.1/2" | 2.1/8" | 2.1/4" | 2" |
| 95936 | 1.1/2" | 2.1/8" | 2.1/4" | 2.1/4" |
| 95938 | 1.1/2" | 2.1/8" | 2.1/4" | 2.3/8" |
| 95940 | 1.1/2" | 2.1/8" | 2.1/4" | 2.1/2" |
| 95948 | 1.1/2" | 2.1/8" | 2.1/4" | 3" |
| 95964 | 1.1/2" | 2.1/8" | 2.1/4" | 4" |
| 96516 | 1" | 1.3/4" | 1.7/8" | 1" |
| 96522 | 1" | 1.3/4" | 1.7/8" | 1.3/8" |
| 96532 | 1" | 1.3/4" | 1.7/8" | 2" |
| 96536 | 1" | 1.3/4" | 1.7/8" | 2.1/4" |
| 96544 | 1" | 1.3/4" | 1.7/8" | 2.3/4" |
| 96548 | 1" | 1.3/4" | 1.7/8" | 3" |
| 96564 | 1" | 1.3/4" | 1.7/8" | 4" |
| 96648 | 1.1/8" | 1.7/8" | 2" | 3" |
| 96724 | 1.1/4" | 2" | 2.3/16" | 1.1/2" |
| 96732 | 1.1/4" | 2" | 2.3/16" | 2" |
| 96736 | 1.1/4" | 2" | 2.3/16" | 2.1/4" |
| 96740 | 1.1/4" | 2" | 2.3/16" | 2.1/2" |
| 96744 | 1.1/4" | 2" | 2.3/16" | 2.3/4" |
| 96746 | 1.1/4" | 2" | 2.3/16" | 2.7/8" |
| 96748 | 1.1/4" | 2" | 2.3/16" | 3" |
| 96764 | 1.1/4" | 2" | 2.3/16" | 4" |
| 97728 | 1.1/4" | 2.1/8" | 2.1/4" | 1.3/4" |
| 97740 | 1.1/4" | 2.1/8" | 2.1/4" | 2.1/2" |
| 97764 | 1.1/4" | 2.1/8" | 2.1/4" | 4" |
| 98540 | 1" | 2" | 2.3/16" | 2.1/2" |
| 98628 | 1.1/8" | 2.1/8" | 2.1/4" | 1.3/4" |
| 98740 | 1.1/4" | 2.1/4" | *** | 2.1/2" |
| 99015 | 1" | 1.5/8" | 1.3/4" | 2.1/2" |
| 32 KC | 50 | 68 | - | 150 |
| 58 KC | 65 | 84 | - | 208 |
| O número sem o prefixo HP indica apenas conjunto de roletes (gaiola) Rolamentos são fabricados com roletes de aço, temperados e retificados (classe 7) e face retificada ou com roletes de aço sem tratamento térmico e faces sem acabamento. Capas são fornecidas temperadas ou sem tratamento térmico. |
||||
